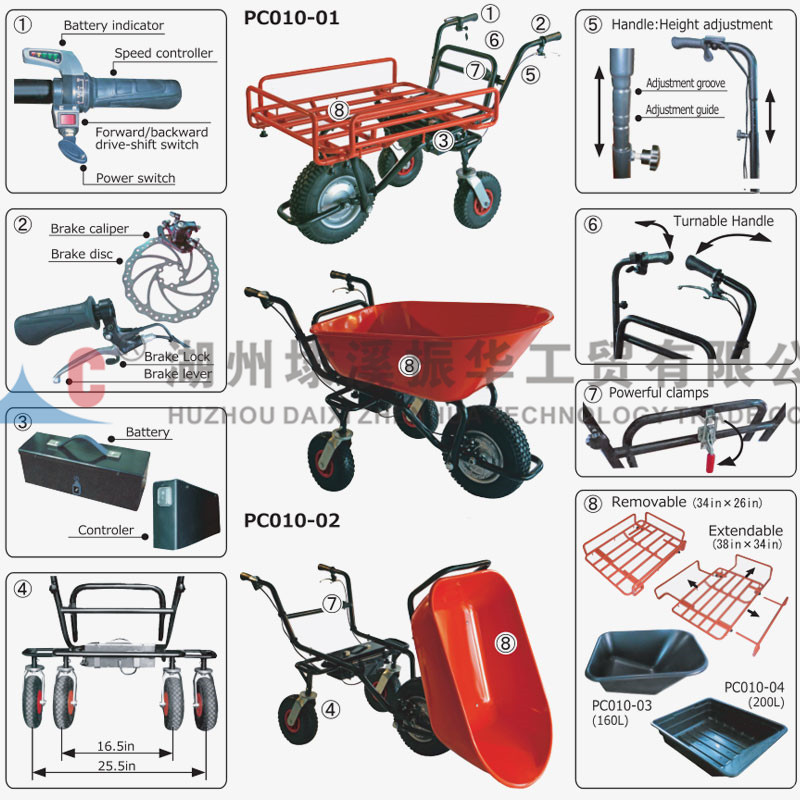

Product Specifications
● Size : 52in(L)x29in(W)x31in~35in(H)
● Weight: 52kg (with battery,pallet)
● Speed : High-speed/Low-speed switchable
〔High speed setting〕3.6mi/h (Forward) • 1.2mi/h (Backward)
〔Low speed setting〕1.9mi/h (Forward) • 0.8mi/h (Backward)
● Max.Load capacity : 160kg
● Max.Climbing angle : Slope 12°(Max.Load capacity : 160kg)
● Bucket capacity : 116L • 160L • 200L
● Pallet area : 34(38)in(L)x26(34)in(W)
(Folding type • Extended form style)
● Motor : Wheel motor 250W / RPM:80/min
(Overcurrent protection circuit)
● Brake system : Disc brake / Brake lever with stopper
● Frame : Low carbon steel
● Surface treatment: Powdered baking finish
● Front tire(l) : 4.80/4.00-8 (Pneumatic tire)
● Rear tire(2) : 3.00-4 Caster type (No flat tire)
● Variable width rear wheel (16in~25in)
● Min.Turning radius : 53in
● Battery : DC24V, 12A Electrolyte lead storage battery
(Encapsulated type)
● Power switch key (3)
● Grip throttle speed adjustment
(0 position automatic retractable)
● Forward/backward drive-shift switch
● Battery indicator
● Rapid charging function : (charging time : 10hours)
● Charger : (input) 100V~240V/50~60Hz
(output) DC29V 1.7A
● Operating temperature range : 32°F~104oF
● QTY per : 20'/40'H container(pcs) : 70/140
● Made in China
